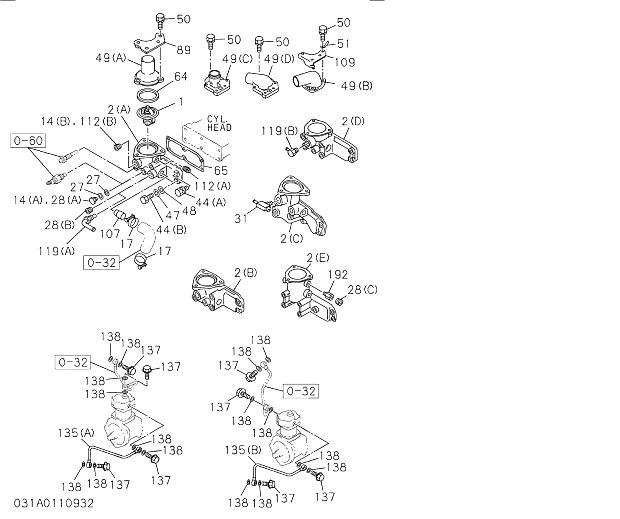

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1 | 8980170271 | 1 | THERMOSTAT | 200610- | ||
| 15 | 8973187322 | 1 | PIPE; BYPASS | 200610- | ||
| 17 | 8941258621 | 2 | CLIP; WATER HOSE | 200610- | ||
| 49 | 8980196950 | 1 | PIPE; WATER OUTLET | 200610- | ||
| 50 | 280508800 | 2 | BOLT; OUTLET PIPE | 200610- | ||
| 66 | 8981145870 | 1 | GASKET; THERMOSTAT | 200610- | ||
| 84 | 952350250 | 1 | CLIP; WATER PIPE | 200610- | ||
| 85 | 280506120 | 1 | BOLT; CLIP | 200610- | ||
| 100 | 280506120 | 1 | BOLT; WATER PIPE | 200610- | ||
| 112 | 5096050050 | 1 | PLUG | 200610- | ||
| 114 | 286508250 | 2 | BOLT; BYPASS PIPE | 200610- | ||
| 119 | 8980387741 | 1 | PIPE; HTR | 200610- | ||
| 147 | 8941258621 | 1 | CLIP; RUBBER CAP | 200610- | ||
| 190(A) | 956902260 | 1 | GASKET; BYPASS PIPE | 200610- | ||
| 190(B) | 8980093220 | 1 | GASKET; BYPASS PIPE | 200610- | ||
| 193 | 8944146880 | 1 | CAP; RUBBER | 200610-201007 | A | |
| 193 | 8941077930 | 1 | CAP; RUBBER | 201008- | ||
| 257 | 8971256001 | 1 | SWITCH; WARNING,OVER HEAT | 200610- | ||
| 295 | 8980555700 | 1 | HOSE; RUBBER,HTR | 200610- |
