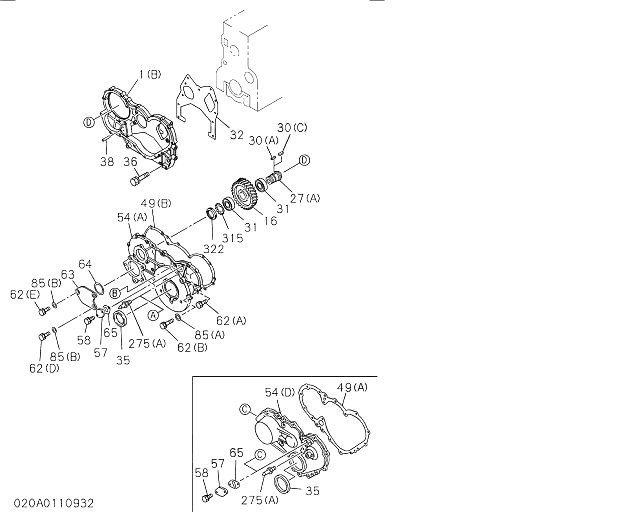

Двигатели-6bg1-tra02-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
001(A)51131101131CASE; TIMING GEAR198508-200106
001(A)51131101141CASE; TIMING GEAR200107-
002(B)11134158501HOUSING; FLYWHEEL198508-200206
002(B)51131101151HOUSING; FLYWHEEL200207-
03289437067111GASKET; GEAR CASE TO C/BL198508-200203
03289437067121GASKET; GEAR CASE TO C/BL200204-
03510962543801SEAL; OIL,CRANKSHAFT FRT198508-
03602808084502BOLT; GEAR CASE199705-200512A
03602868082004BOLT; GEAR CASE199705-200512A
03602805084502BOLT; GEAR CASE200601-
03602865082004BOLT; GEAR CASE200601-
03890815101801PIN; GEAR CASE COVER198508-
049(A)11132206001GASKET; GEAR CASE TO COVER199911-200012
049(A)90815101811GASKET; GEAR CASE TO COVER200101-200106
049(A)90815101821GASKET; GEAR CASE TO COVER200107-
054(D)11132107901COVER; GEAR CASE198508-
05751132100902COVER; TIMING CHECK HOLE198508-
05802808061204BOLT; CHECK HOLE COVER199705-200512
05802805061204BOLT; CHECK HOLE COVER200601-
062(A)02868082506BOLT; COVER199909-200512A
062(A)02865082506BOLT; COVER200601-
062(B)02808085003BOLT; COVER199909-200512A
062(B)02805085003BOLT; COVER200601-
06589702760112GASKET; COVER,TIMING CHECK HOLE198508-
17589707282311SEAL; OIL,CR/SHF,RR198508-
20509116021401NUT; HSG199704-200602A
20509118021401NUT; HSG200603-
211(A)05004082507BOLT; HSG198508-200512A
211(B)02889144505BOLT; HSG199702-200512A
211(B)02889146002BOLT; HSG199702-200512A
211(B)02886144505BOLT; HSG200601-
211(B)02886146002BOLT; HSG200601-
211(B)05054082507BOLT; HSG200601-
22499441123503STUD; STARTER198508-200604A
22404401123503STUD; STARTER200605-
275(A)51132700901POINTER; TIMING CHECK HOLE198508-
