Двигатели-6wg1-xqa02-012 cylinder block

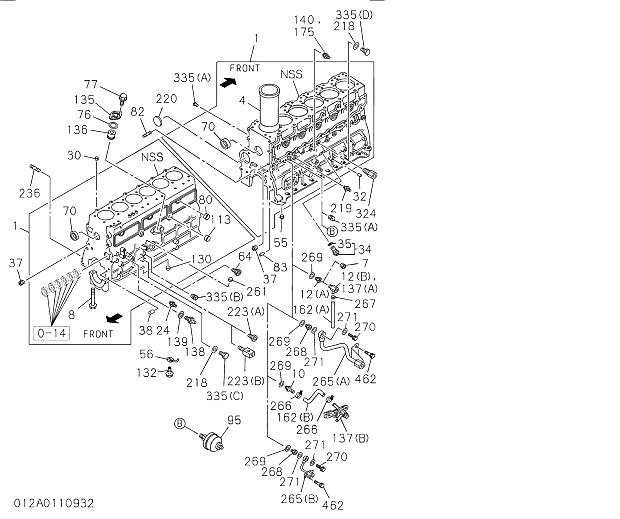

012 cylinder block

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
00111121063291BLOCK ASM; CYL200007-200505A
00189800365511BLOCK ASM; CYL200506-

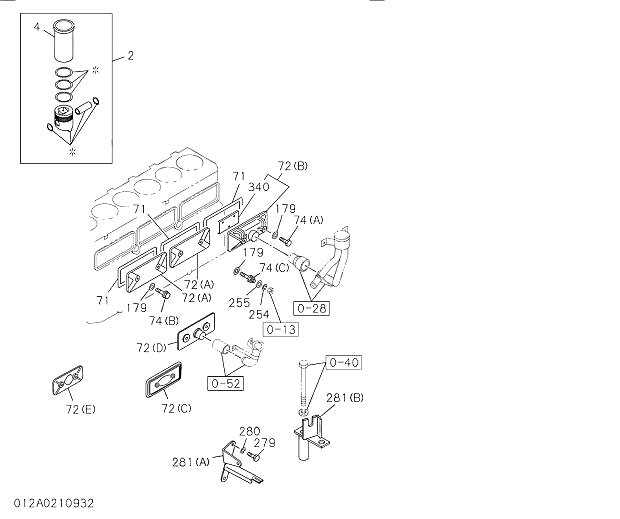

00218781277316LINER SET; ENG CYL200007-
00218781277416LINER SET; ENG CYL200007-
00411126133326LINER; C/BL200007-
00411126133426LINER; C/BL200007-
03090815101803PIN; CYL HD GASKET SETTING200007-200807
03090815101812PIN; CYL HD GASKET SETTING200808-
03289432550612PIN; INJ PUMP BRKT200007-
03411316003031VALVE; OIL RELIEF200007-
03510962329701GASKET; RELIEF VLV200007-
036(A)10960000524CUP; SEALING,WATER JACKET200007-
036(B)10960001601CUP; SEALING,WATER JACKET200007-
036(C)894241637013CUP; SEALING,WATER JACKET200007-
036(D)10960006512CUP; SEALING,WATER JACKET200007-
03890815101822PIN; TIMING GEAR CASE200007-
04611334901406BOLT; JOINT,OIL JET,PISTON COOLING200007-
05611334213916JET; OIL,PISTON COOLING200007-
070(A)10960001221CUP; SEALING,FRT & RR200007-
070(B)90815101834CUP; SEALING,FRT & RR200007-
08390815142802PIN; FLYWHEEL HSG200007-
12289439985821ADAPTER; OIL PRESSURE SWITCH200011-
19102818601502BOLT; BRKT200007-200512A
19102815601502BOLT; BRKT200601-
211(A)109070151014BOLT; CRANKCASE200007-
211(B)109070087228BOLT; CRANKCASE200007-
21210974006812PIN; CRANKCASE200007-
218(A)10963008301GASKET; PLUG,C/BL SIDE200007-
218(B)10963008401GASKET; PLUG,C/BL SIDE200007-
218(C)10963008901GASKET; PLUG,C/BL SIDE200007-
218(D)10963014102GASKET; PLUG,C/BL SIDE200007-
230(A)10974902512PIN; THRUST METAL,CR/SHF200007-
230(B)90816051002PIN; THRUST METAL,CR/SHF200007-
25690816051011GASKET; ADAPTER200101-
306(A)12333553201BRACKET; ENG CONT WIRE200007-
335(A)10960403501PLUG; C/BL,SIDE200007-
335(B)10960409401PLUG; C/BL,SIDE200007-
335(C)10960409501PLUG; C/BL,SIDE200007-200805A
335(C)89804705401PLUG; C/BL,SIDE200806-
335(D)99920231402PLUG; C/BL,SIDE200007-200805A
335(D)89804294402PLUG; C/BL,SIDE200806-
47910960409801PLUG; HOLE,OIL LEVEL GAUGE200007-
