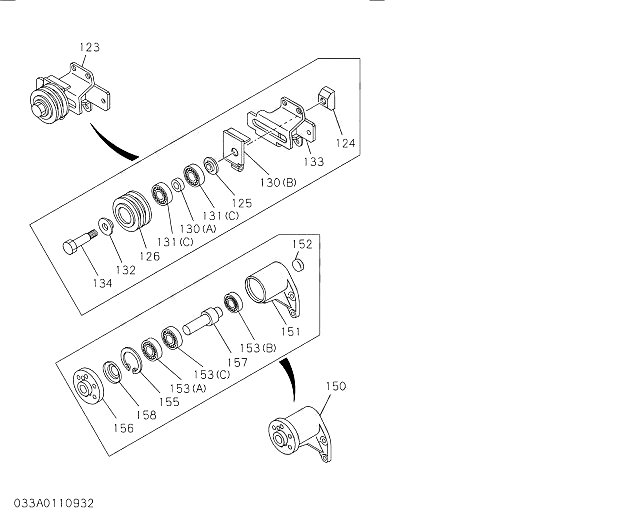

033 fan and fan belt
| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001 | 1136603311 | 1 | FAN; COOLING | 200007-200611 | |
| 001 | 8980622920 | 1 | FAN; COOLING | 200612- | |
| 013 | 0911501100 | 4 | NUT; COOLING FAN | 200007-200602 | A |
| 013 | 0911801100 | 4 | NUT; COOLING FAN | 200603-200611 | |
| 013 | 8980622921 | 6 | NUT; COOLING FAN | 200612- | |
| 032(A) | 1136420770 | 1 | ADAPTER; FAN TO PULLEY | 200007-200611 | |
| 032(B) | 8980302231 | 1 | ADAPTER; FAN TO PULLEY | 200612- | |
| 036(B) | 1136715060 | 1 | BELT; COOLING FAN | 200007- | |
| 038 | 1136420793 | 2 | SPACER; FAN | 200007-200712 | |
| 038 | 8980352350 | 2 | SPACER; FAN | 200801- | |
| 041 | 9091800320 | 1 | RING; SNAP | 200007- | |
| 066 | 0281860110 | 6 | BOLT; PULLEY | 200007-200512 | A |
| 066 | 0281560110 | 6 | BOLT; PULLEY | 200601- | |
| 069 | 9091607120 | 2 | WASHER; PL,ADJ PLATE,GEN | 200107- | |
| 071(A) | 0281810250 | 1 | BOLT; ADJ PLATE,GEN | 200007-200512 | A |
| 071(A) | 0281510250 | 1 | BOLT; ADJ PLATE,GEN | 200601- | |
| 071(B) | 9091800321 | 1 | BOLT; ADJ PLATE,GEN | 200007-200512 | A |
| 071(B) | 9091800322 | 1 | BOLT; ADJ PLATE,GEN | 200601- | |
| 071(C) | 1090091131 | 1 | BOLT; ADJ PLATE,GEN | 200007- | |
| 075(A) | 1136743011 | 1 | BRACKET; IDLE PULLEY | 200007-200505 | |
| 075(B) | 8980027990 | 1 | BRACKET; IDLE PULLEY | 200506- | |
| 075(C) | 8980117230 | 1 | BRACKET; IDLE PULLEY | 200506- | |
| 079 | 0583106140 | 4 | BOLT; PLATE | 200007-200805 | A |
| 079 | 0583306140 | 4 | BOLT; PLATE | 200806- | |
| 080(B) | 1136742950 | 1 | PLATE; ADJ | 200007- | |
| 081(A) | 1136741600 | 1 | PIECE; SLIDING | 200007- | |
| 081(B) | 1136650262 | 1 | PIECE; SLIDING | 200007- | |
| 082 | 0911501120 | 1 | NUT; ADJ PLATE | 200007-200602 | A |
| 082 | 0911801120 | 1 | NUT; ADJ PLATE | 200603- | |
| 083(A) | 9091646160 | 1 | WASHER; PL | 200007- | |
| 083(B) | 9091646180 | 1 | WASHER; PL | 200007-200605 | A |
| 083(B) | 0916146180 | 1 | WASHER; PL | 200606- | |
| 084 | 1136660490 | 1 | SPACER | 200007- | |
| 088(B) | 1136660211 | 1 | WASHER; PL,ADJ PLATE | 200007- | |
| 103 | 1136640240 | 1 | PLATE; FAN CLU | 200007-200509 | |
| 103 | 8980303470 | 1 | PLATE; FAN CLU | 200510- | |
| 111 | 9043110250 | 4 | STUD; FAN DRIVE | 200007-200604 | A |
| 111 | 0431110250 | 4 | STUD; FAN DRIVE | 200605-200611 | |
| 111 | 8942072360 | 6 | STUD; FAN DRIVE | 200612- | |
| 112(B) | 1136412020 | 1 | PULLEY; FAN CENTER | 200007- | |
| 121 | 9091800323 | 2 | NUT; FAN CENTER | 200007-200602 | A |
| 121 | 9091800324 | 2 | NUT; FAN CENTER | 200603- | |
| 123 | 1136603390 | 1 | PULLEY ASM; CENTER | 200007- | |
| 125 | 9091647240 | 1 | WASHER | 200007- | |
| 126(C) | 1136631220 | 1 | PULLEY; IDLE | 200007- | |
| 130(C) | 1136660500 | 1 | SPACER; IDLE PULLEY BRG | 200010- | |
| 131(C) | 1098002920 | 1 | BEARING; BALL,FAN PULLEY | 200007- | |
| 131(D) | 1098002930 | 3 | BEARING; BALL,FAN PULLEY | 200007- | |
| 131(E) | 1098002940 | 1 | BEARING; BALL,FAN PULLEY | 200007- | |
| 131(F) | 1098002950 | 1 | BEARING; BALL,FAN PULLEY | 200007- | |
| 132(C) | 1136640270 | 2 | COVER; DUST | 200007- | |
| 133 | 1136680480 | 1 | BRACKET; IDLE PULLEY | 200007- | |
| 134(A) | 1136650540 | 1 | SPINDLE; IDLE PULLEY | 200007- | |
| 137(A) | 1090004800 | 1 | BOLT; TENSION | 200007- | |
| 137(B) | 1090091830 | 1 | BOLT; TENSION | 200101- | |
| 140 | 9991115180 | 1 | NUT; IDLE PULLEY | 200007-200512 | A |
| 140 | 0911115180 | 1 | NUT; IDLE PULLEY | 200601- | |
| 152 | 1096000122 | 1 | CUP; SEALING | 200007- | |
| 157 | 1136310920 | 1 | SHAFT; BRG CASE | 200007-200509 | |
| 157 | 8980303460 | 1 | SHAFT; BRG CASE | 200510- | |
| 182(A) | 0281810700 | 2 | BOLT; BRKT | 200102-200512 | A |
| 182(A) | 0287810350 | 1 | BOLT; BRKT | 200506-200512 | A |
| 182(A) | 0281510700 | 2 | BOLT; BRKT | 200601- | |
| 182(A) | 0287510350 | 1 | BOLT; BRKT | 200601- | |
| 182(B) | 1090201460 | 1 | BOLT; BRKT | 200601- | |
| 185 | 1136715070 | 1 | BELT; GEN DRIVE | 200007- | |
| 216 | 9991115240 | 1 | NUT; PULLEY | 200007-200512 | A |
| 216 | 0911115240 | 1 | NUT; PULLEY | 200601- | |
| 329 | 0281860120 | 4 | BOLT; FAN CENTER | 200007-200512 | A |
| 329 | 0281560120 | 4 | BOLT; FAN CENTER | 200601- | |
| 340(A) | 1136603400 | 1 | CENTER ASM; FAN | 200007-200509 | |
| 340(A) | 8980303450 | 1 | CENTER ASM; FAN | 200510- | |
